Compact meter designed to meter residential and small commercial energy consumers in distribution networks to offer reliable energy measurement and is ideal for space-constraint installations.
Compact meter designed to meter residential and small commercial energy consumers in distribution networks to offer reliable energy measurement and is ideal for space-constraint installations.

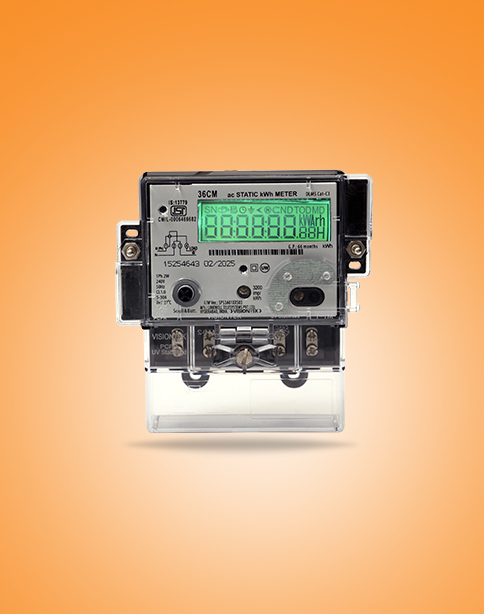

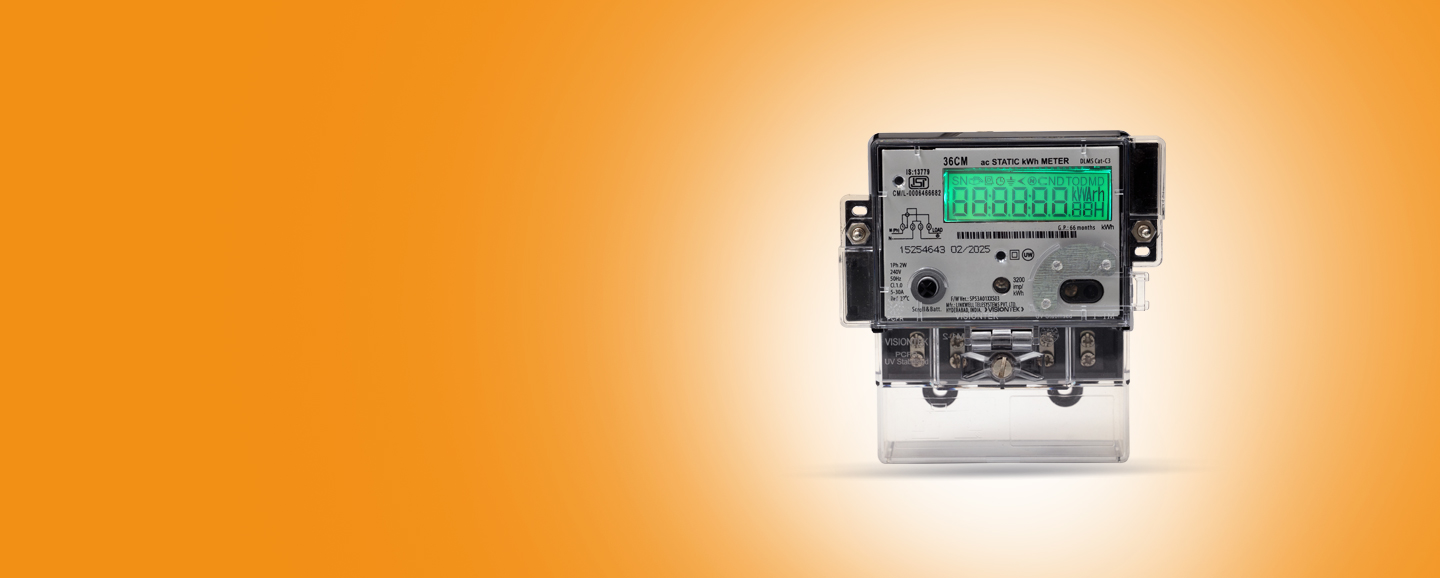

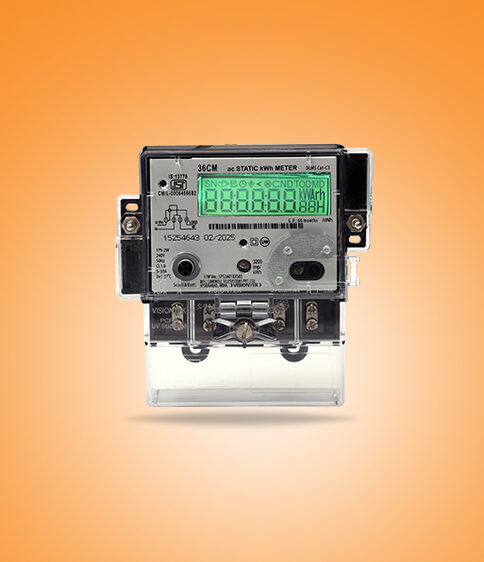

VISIONTEK 36CM single-phase static electronic energy meter is a compact version designed to meter residential and small commercial energy consumers in distribution networks, ideal for space-constraint installations.
The meter is designed to offer reliable energy measurement in single phase circuit and is highly suitable for metering and remote communication purposes. It comes with large display with a range of communication options for local and remote monitoring.
It is a perfect combination of well-proven metering technology and state of the art communication modems all integrated in single enclosure.
The intelligent features of detecting and recording different anomaly conditions and cover opening events make it ideal choice for revenue protection for distribution companies
Class 1.0 accuracy compliance with IS/IEC standards
LCD for display of measured parameters with legends and for tamper indications
Programmable Time of Use metering
Programmable load profile for 15 minutes or 30 minutes or 60 minutes interval for kWh, kW MD, voltage, current
Event logging of tampers and cover open detection
Bill point registers storage up to last 12 months
LED indications for Calibration and Meter status
Optical/IR*/IrDA* Communication for meter reading
RS 232 port for Remote Meter Reading
Meter reading in absence of mains with built-in battery
High immunity to magnetic influence and electrostatic discharge
Sealing provisions for meter cover & base and terminal cover
Connection Type : Single Phase Two Wire
Accuracy: Class 1.0 as per IS13779, IEC 62052-11/IEC 62053-21,CBIP TR 88 / 304
Voltage Nominal : 240 V (L-N) Operating : -40% to +20%
Current: 5-30A, 10-60A*
Power Factor Range: Zero Lag – Unity – Zero Lead
Frequency : 50 Hz ± 5%
Starting Current: 0.2% of Ib at Vref & Unity Power Factor Power Consumption
Voltage Circuit : 1.5 W / 8.0 VA ; Current Circuit : 4.0 VA
Display : LCD with back-light, 7 segment display for parameters and icons for tamper indications
Communication Interfaces: Optical port hardware compatible to IEC 62056-21
> IR / IrDA
> RS 232 port
Measured Values/Units: Active Energy
> Apparent Energy
> Maximum Demand kW
> Maximum Demand kVA
> Instantaneous Voltage
> Instantaneous Current
> Instantaneous Frequency
> Instantaneous Power Factor
Maximum Demand (MD) Register: Programmable Integration Period (15 or 30 or 60 minutes) ; Sliding window method or Fixed window method
Billing registers: Upto 12 months bill point registers
Time of Use / Time of Day: Programmable time zones
