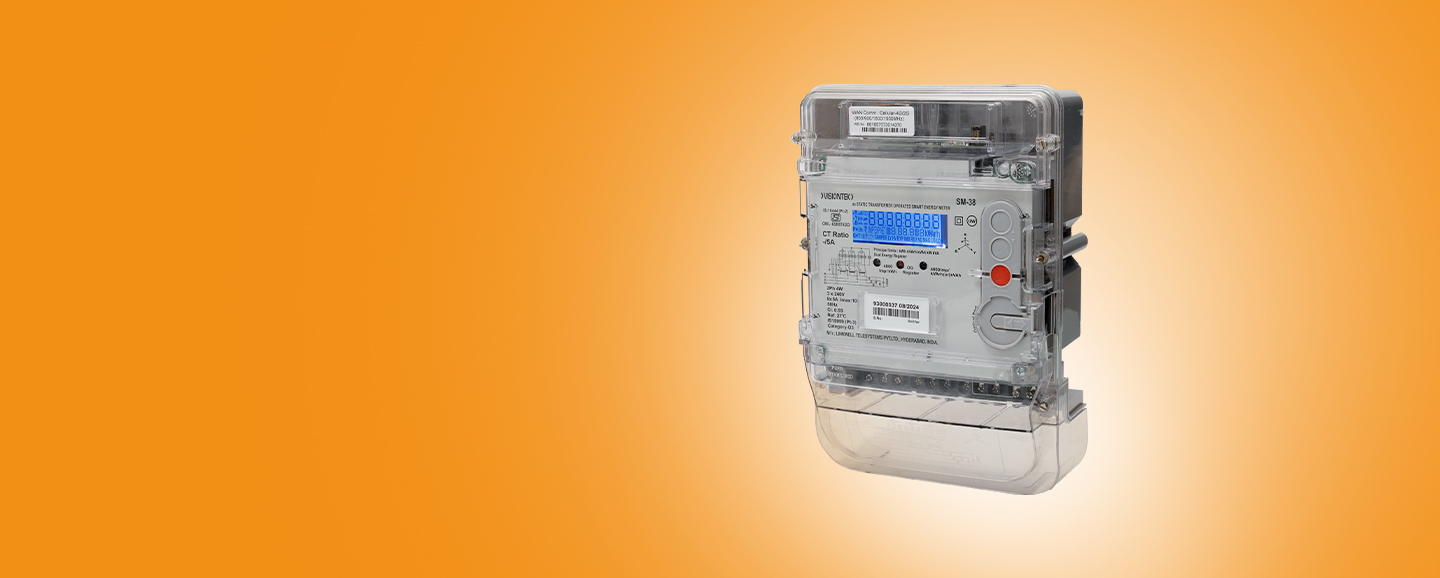

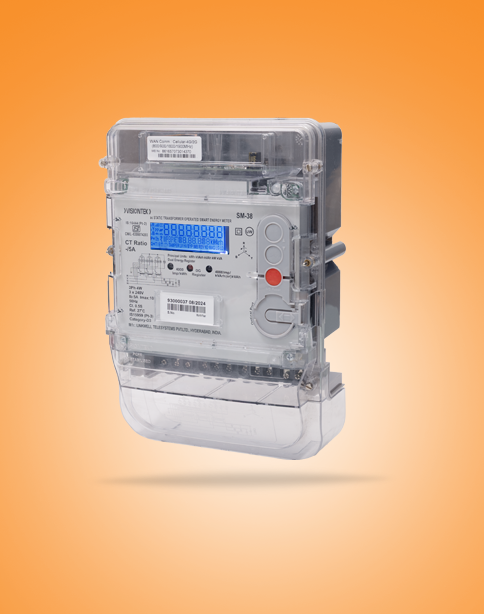

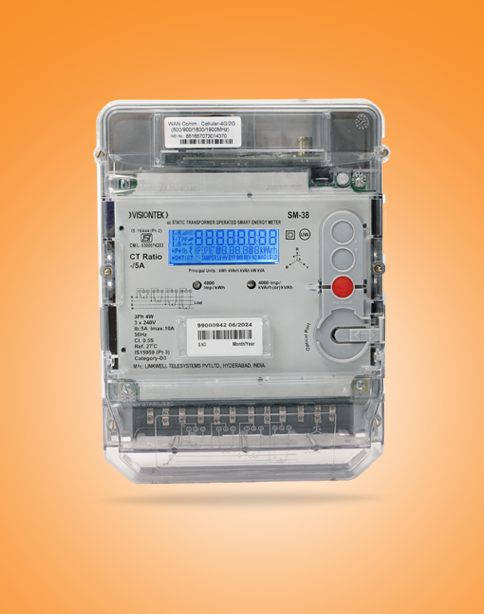

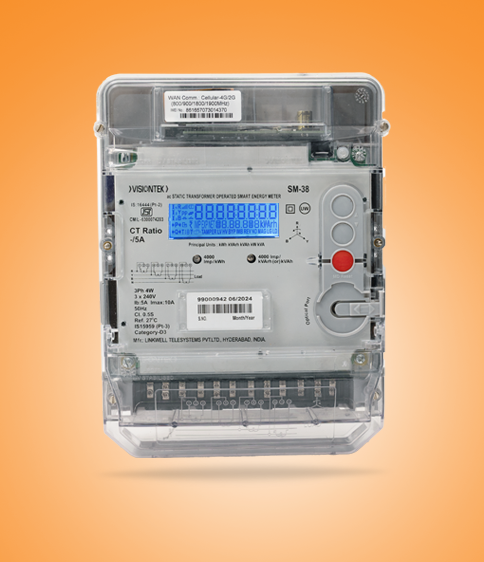

Three-Phase Transformer Operated Smart Meter SM-38

  • VISIONTEK SM-38 Three Phase ac Static Transformer Operated Smart Energy Meter from Linkwell is designed for revenue metering application for high value commercial & industrial (LT) consumers and for energy audit purposes at distribution transformer side.

    Smart Meters have versatile features that enable the utilities to configure the meter remotely such as downloading the TOD tariff into the meter, configure to Bi-directional metering (Net Metering), firmware upgrade, etc.

    VISIONTEK SM-38 Smart Meters have a field replaceable communication module that offers two-way communication for meter data transfer. The communication module is swappable between different communication technologies as specified in IS 16444 Part 2 such as 6LoWPAN or Cellular (GSM/GPRS/2G/4G LTE)

    • Class 0.5s accuracy and compliance with IS/IEC standards
    • LCD for display of measured parameters with legends & communication network indications
    • LED output for Calibration/Testing and Meter activity
    • Programmable Time of Use metering, block load profile, daily load profile
    • Optical Communication port for local meter reading
    • Universal NIC (Network Interface Card) for interoperability, field replaceable, plug and play remote communication
    • Remote meter reading through GSM/GPRS modem/ NBIoT Module/LPRF module with 6LoWPAN network protocol
    • Push/Pull data mechanism for meter data transfer
    • last gasp/first breath/other event alerts
    • Firmware download over the air feature
    • Anti-tamper features, detection of meter top cover-open and communication module open instances
    • Digital inputs for health monitoring of DT
    •
